Omada Outdoor Wireless Bridge 5 GHz 867 Mbps, 3 x Gigabit Ports, up to 0.6 miles, EAP211-Bridge KIT V3
- Up to 0.62 mi (1 km) Transmission Distance*
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go-ideal for quick deployments.
- Unique Design for Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing. Simply dial the role switch and press the pair button—no portal login needed. Supports up to 1-to-4 multi-bridge connections.
- App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification.
- Flexible Power Supply: 802.3af PoE, 24V Passive PoE(Adapters included), and 12V DC (compatible with TP-Link solar power supply system)
- 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch△
- Ideal for Outdoor Scenarios: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C.**
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†

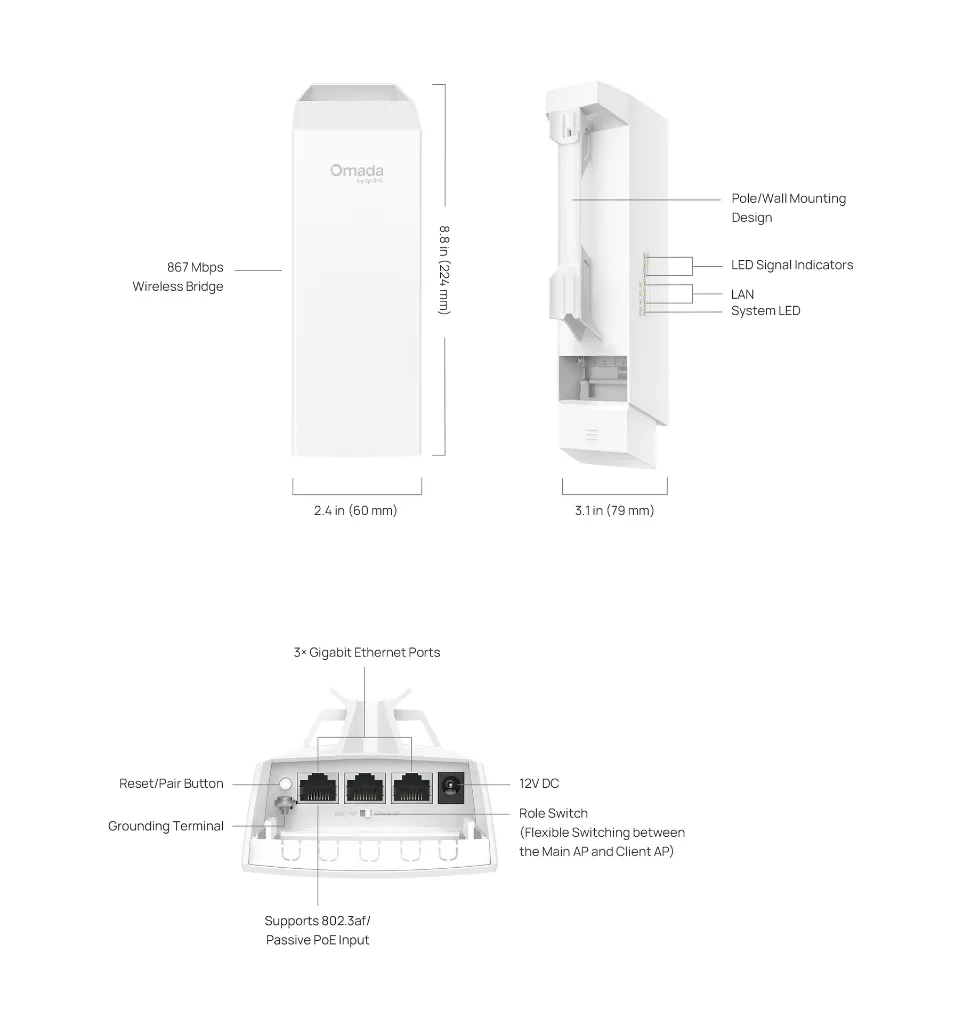

| HARDWARE FEATURES |
|---|
| Interface | 3x Gigabit Ethernet Ports |
|---|
| Button | Reset |
|---|
| DIP Switch | Role Switch |
|---|
| Power Supply | 12V DC
802.3af PoE (1,2pins; 3,6pins)
24V Passive PoE (+4,5pins; -7,8pins) |
|---|
| Max. Power Consumption | 11.5W |
|---|
| Dimensions ( W x D x H ) | 3.1 × 2.4 × 8.8 in (79 × 60 × 224 mm) |
|---|
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 10.0 dBi
Horizontal:60°, Vertical: 30° |
|---|
| Weatherproof Enclosure | IP65 |
|---|
| Mounting | Pole and wall mounting ( Pole accessories included) |
|---|
| WIRELESS FEATURES |
|---|
| PtP | Yes |
|---|
| PtMP | Supports up to 1:4 multi-bridge connections. |
|---|
| Coverage | 1,000 m (0.62 mi)* |
|---|
| Transmission Distance | 1,000 m (0.62 mi)* |
|---|
| Wireless Standards | IEEE 802.11 a/n/ac |
|---|
| Frequency | 5 GHz |
|---|
| Signal Rate | 5 GHz: Up to 867 Mbps§
|
|---|
| Wireless Functions | • MU-MIMO: 5G 2x2 MU-MIMO DL
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• Static IP/Dynamic IP
• Rate Limit
• Guest Network
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast |
|---|
| Wireless Security | • VLAN
• Rogue AP Detection
• Maximum number of MAC Filter: 4,000
• Wireless Encryption |
|---|
| Transmission Power | • CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz, band3, EIRP)
• FCC:
<23dBm (5 GHz, band1)
<25dBm (5 GHz, band4) |
|---|
| Management Features |
|---|
| Omada App | Yes |
|---|
| Restore & Backup | Yes |
|---|
| Firmware update via Web | Yes |
|---|
| NTP | Yes |
|---|
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
|---|
| Cloud Access | Yes. Require the use of Omada Controllers. |
|---|
| Email Alerts | Yes |
|---|
| LED ON/OFF Control | Yes |
|---|
| SNMP | Yes |
|---|
| SSH | Yes |
|---|
| Web-based Management | Yes |
|---|
| Zero-Touch Provisioning | Yes |
|---|
| OTHERS |
|---|
| Certification | CE, FCC, RoHS |
|---|
| Package Content | • EAP211-Bridge KIT
• Installation Guide
• Mounting Kit
• Passive PoE Adapter
|
|---|
| Lightning Protection | • Air discharge: ±8kV
• Contact discharge: ±4kV
• Common mode 10/700: ±6kV |
|---|
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing |
|---|
For additional version information, please go to the support page.
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.
△Non-Omada devices connected to the wired LAN ports will not be recognized by the Omada controllers, preventing users from viewing their connection status. To address this issue, connect those non-Omada devices to an Omada switch that links to the bridge's wired LAN ports.
**Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
†These functions require the use of an Omada controller.
