Pole Solutions

Nema Boxes
Sort By Sort By: Featured

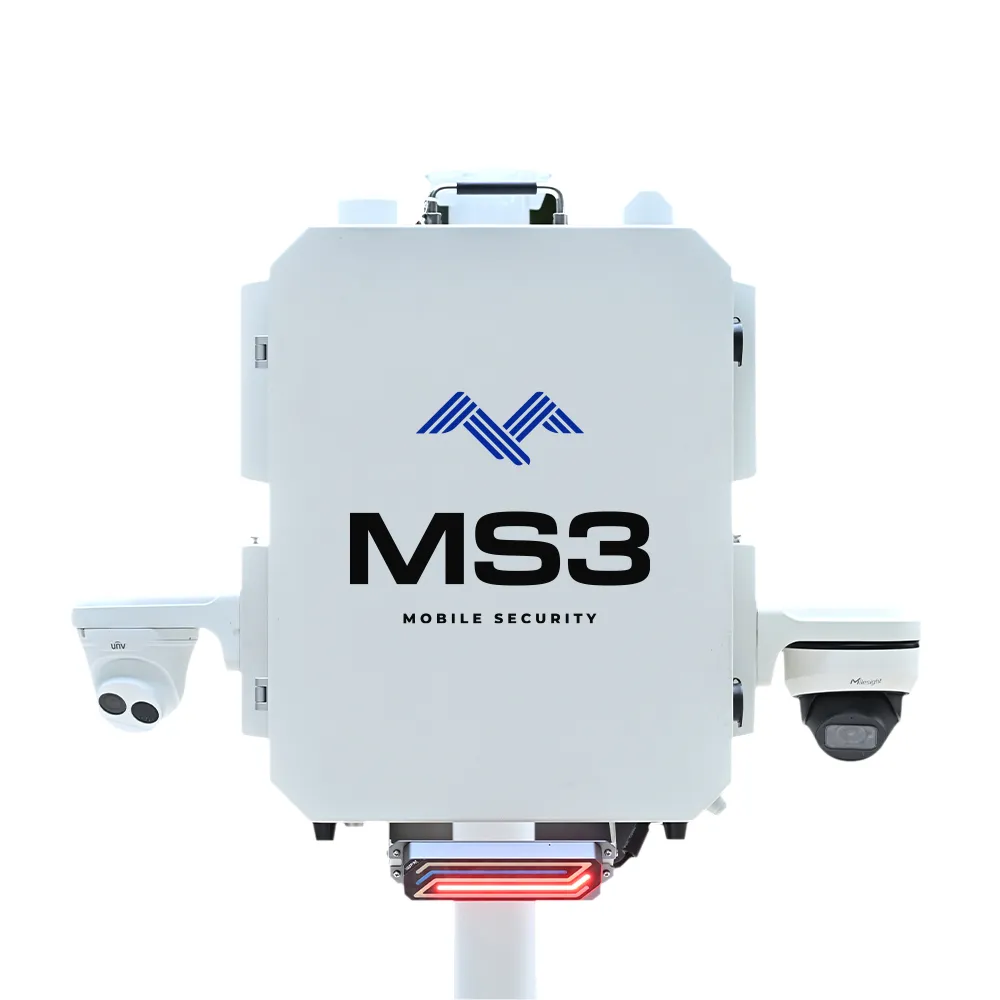

[DD4 40Ah battery backup, Nema 110-277v] MSP-AC-40 MSP with cams.webp

MSP-AC-40

Aviation Aluminum Alloy
Dimension: 19"W x 21"H x 12"D (Including Mount)
Gross Weight : 58lbs (with 24V/40Ah Battery Included), 40lbs without Battery (battery is designed to be installed quickly allowing installer to mount the box the install the battery)
Two cooling fan and air vent for protection
1*110V-277V input (MAX:1.5KW)
4 *DC12V output power connection terminal
1*DC48V output power connection terminal
With 1*AC110-240V output power connection terminal

[GAGO No Battery: 110-277 nema] MSP-AC-00 DD4A-3 no Battery (1).webp

MSP-AC-00

Built-in Air Breaker and Surge Protector;
Built-in 240W PCM and MW UL 48V/5A Power Supply(AC110-240V);
Built-in 2PCs UL Fans Controlled by 2PCs Temp Controllers;
With 70CM AC Wire with IP68 Water-Proof Stainless Connector and AC Wire Water-Proof UL Male & Female Connector;
With NPT 3/4” Knockout and Cap, with PG16 Connectors and Hand Carrier;
With 4G Antennas and Horn Speaker Installation Position plus Cable-in Design;
With Pole & Wall Mount Bracket and PTZ Mount.
[PRE RELEASE: See Mike DD3 MSP-800 two 400w panels] MSP-800

MSP-800

The MSP series is our solution for locations that have no power. Built with an industrial NEMA enclosure, the MSP utilizes the sun to quickly charge the battery. This solution is perfect for parking lots and remote locations, cities, parks, special event facilities.

Units are customized based on the equipment required to achieve your goals for security, surveillance, and management needs. Please contact your sales representative for more details.
[DD3 117Ah 410w Panel and Nema Kit] MSP-400 all 3 angles msp200 400 web.webp

MSP-400

Victron Energy Controls & Cloud Management Software
400WP Solar Panel and Pole Mount
Batteries: 117Ah 24v
Output: 12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
8 port industrial PoE+ switch
[DD3 117Ah with 200w panel and mount] MSP-200

MSP-200

Industrial NEMA enclosure,
Victron Energy Controls & Cloud Management software
8 port industrial PoE+ switch
200WP Solar Panel and Heavy duty solar panel mount
Batteries: 117Ah 24v
Output: 12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[DD3 117Ah, no panel or mount, VictronConnect controls] MSP-000 MSP with cams.webp

MSP-000

Industrial NEMA enclosure,
Victron Energy Controls & Cloud Management software
8 port industrial PoE+ switch
Supports up 450w solar panel (not included)
Batteries: 117Ah 24v
Output: 12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket for nema box)

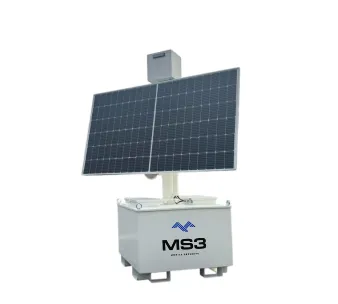

[Cradle: 380w panel, 300ah gel, victron] MSC-380 MSC-AC-000 20260512_151459.webp

MSC-380

Temporary pole solution. Built with a 380 Watt industrial solar panel And 2x 150 Amp/Hr. Batteries.
It has a 15' mast and is equipped with Victron energy controls.
[DD3 117Ah, Axis bullets, cradle point 200w panel] MSP-200-AX-B

MSP-200-AX-B

Industrial NEMA enclosure,
Victron Energy Controls
200WP Solar Panels
Batteries: 115Ah
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[DD3 117Ah Axis bullets, 400w panel] MSP-450-AX-B

MSP-450-AX-B

Industrial NEMA enclosure,
Victron Energy Controls
450WP Solar Panels
Batteries: 117Ah
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[DD2 110x277v Nema Axis bullets] MSP-AC-AX-B

MSP-AC-AX-B

Industrial NEMA enclosure,
Victron Energy Controls
200WP Solar Panels
Batteries: 115Ah
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[MSP 400 with Axis 4 way camera] MSP-450-AX-360

MSP-450-AX-360

Industrial NEMA enclosure,
Victron Energy Controls
450WP Solar Panels
Batteries: 117Ah
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[DD2 Nema 110-277v Axis 360 multi lens] MSP-AC-AX-360

MSP-AC-AX-360

Industrial NEMA enclosure,
Victron Energy Controls
200WP Solar Panels
Batteries: 115Ah
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[(DD3) MSP 200 with Hanwha LPR camera] MSP-200-HA-LPR-D all 3 angles msp200 400 web.webp

MSP-200-HA-LPR-D

POWER
Victron Energy Controls
400WP Solar Panels
Batteries: 115Ah
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[MSP with 2 uniview 180 degree cameras] MSP-450-UN-180 all 3 angles msp200 400 web.webp

MSP-450-UN-180

POWER
Victron Energy Controls
450WP Solar Panels and pole mount
Batteries: 115Ah
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[DD3 200W W/Hanwha two way and cell] MSP-200-HA-CL all 3 angles msp200 400 web.webp

MSP-200-HA-CL

POWER
Victron Energy Controls
400WP Solar Panels
Batteries: 115Ah
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[DD3 with 100w panel kit and mount] MSP-100 MSP with AI Light.webp

MSP-100

Industrial NEMA enclosure,
Victron Energy Controls
100WP Bi Facial Solar Panels
Batteries: 117Ah 24v Heated Lithium
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[Cradle: 900W panel, 300ah gel, victron] MSC-900

MSC-900

Temporary pole solution. Built with two 450Watt solar panels & 4x 150 Amp/Hr. AGM batteries.
It has a 15' mast and is equipped with Victron energy controls.
[DD3 400w two Axis Bullets and Cradle point] MSP-200-AX-B

MSP-200-AX-B

Industrial NEMA enclosure,
Victron Energy Controls
200WP Solar Panels
Batteries: 115Ah
12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
[DD3- No battery: Need extra Nema battery kit] MSP-000-EB MSP with cams.webp

MSP-000-EB

Industrial NEMA enclosure,
Victron Energy Controls & Cloud Management software
8 port industrial PoE+ switch
Supports up 450w solar panel (not included)
Batteries: external not included
Output: 12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket for nema box)

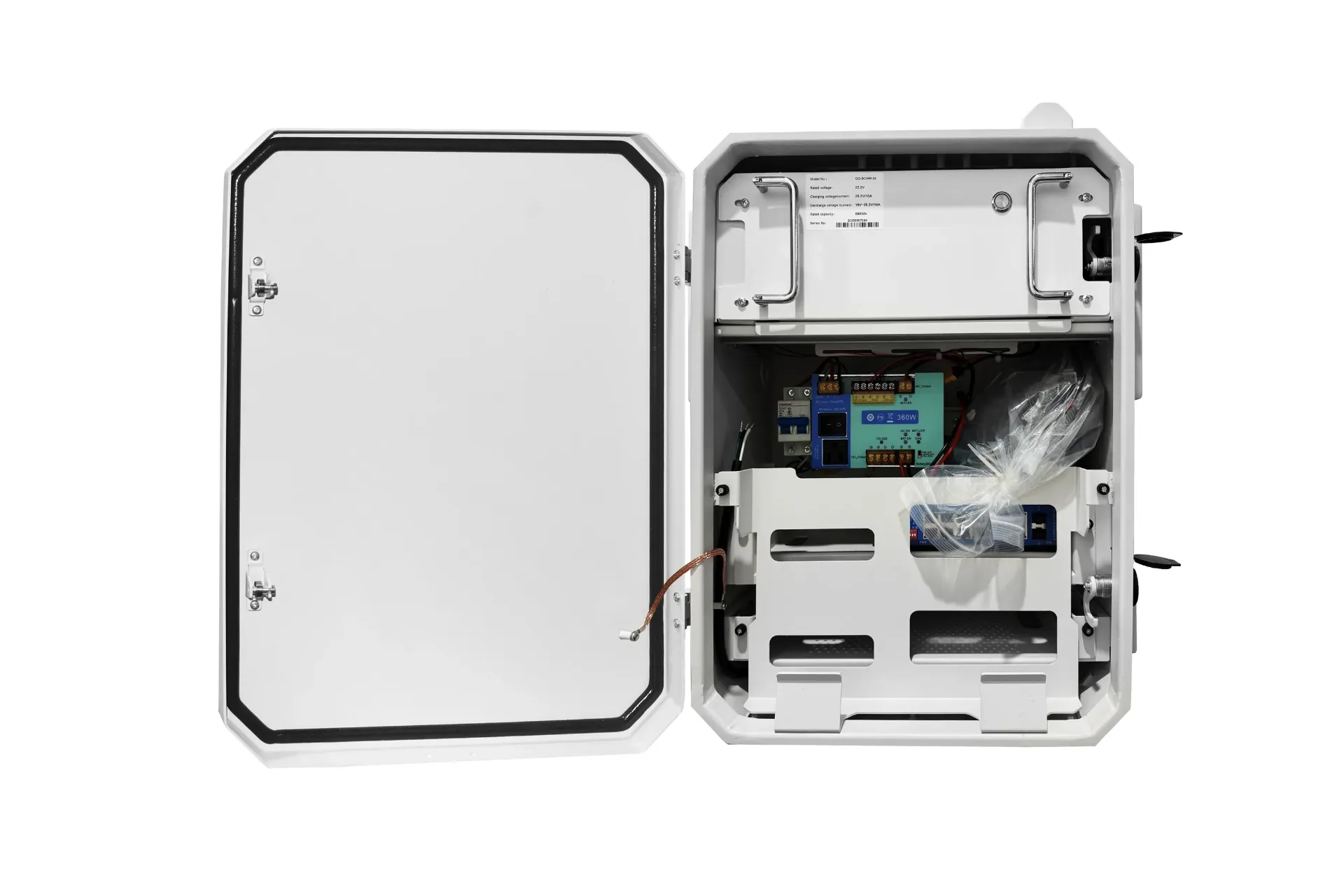

[DD3 Kit with 450w panel and mount] MSP-450 all 3 angles msp200 400 web.webp

MSP-450

Victron Energy Controls & Cloud Management Software
450WP Solar Panel and Pole Mount
Batteries: 117Ah 24v
Output: 12V, 24V and 48V DC
MEASUREMENTS
19"W x 21"H x 12"D (includes mounting bracket)
8 port industrial PoE+ switch
